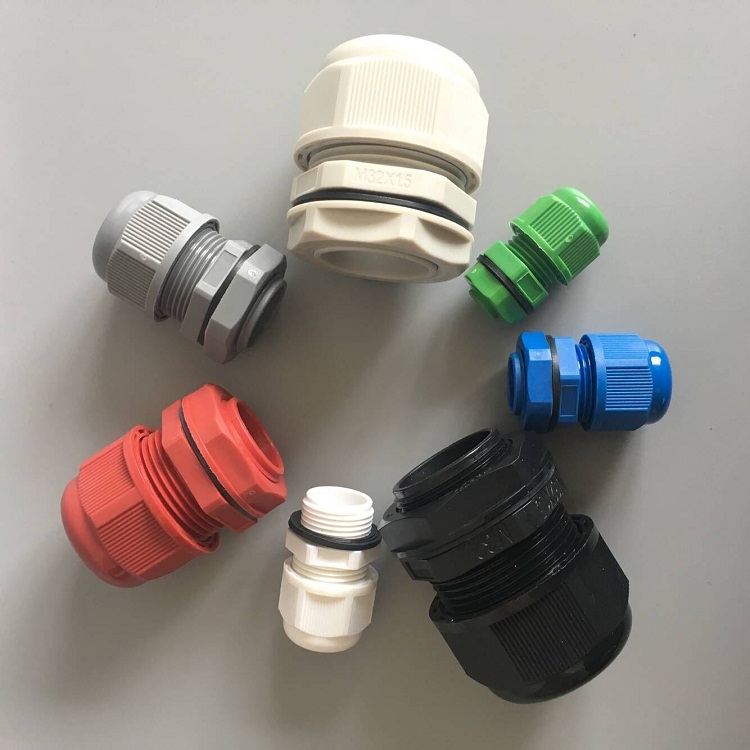

尼龙电缆固定头（连体）
型 号：XR-NCG
材 质：主体采用UL认可之PA66，密封件采用三元乙丙耐候橡胶
防火等级：V2（可定制V0）
螺纹规格：公制M型，德制PG型，英制G型，美制NPT型
防护等级：IP68
工作温度：静态-40～100℃，动态-20～80℃
颜 色：黑，灰（其他颜色可定做）
特 性：专业的夹紧爪和夹紧圈设计，固定线径范围大，抗拉力强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂
|
螺牙规格 Thread |
编号 Item.No. |
电缆范围 Ф(mm) |
螺纹外径 C1(mm) |
螺纹长度 C2(mm) |
扳手径 A&F(mm) |
包装 (pcs) |
|
M8×1.25 |
NCG-M8-4.8 |
2-4.8 |
8 |
7.5 |
13/12 |
50 |
|
M10×1.5 |
NCG-M10-6 |
3-6 |
10 |
8 |
15/13 |
50 |
|
M12 x 1.5 |
NCG-M12S-6 |
3-6.5 |
12 |
8.5 |
18/15 |
50 |
|
NCG-M12SL-6 |
3-6.5 |
12 |
15 |
18/15 |
50 |
|
|
NCG-M12-5 |
3-5.5 |
12 |
8.5 |
18/19 |
50 |
|
|
NCG-M12-7 |
4-8 |
12 |
8.5 |
18/19 |
50 |
|
|
NCG-M12L-5 |
3-5.5 |
12 |
15 |
18/19 |
50 |
|
|
NCG-M12L-7 |
4-8 |
12 |
15 |
18/19 |
50 |
|
|
M16 x 1.5 |
NCG-M16S-8 |
4-8 |
16 |
10 |
22/19 |
50 |
|
NCG-M16SL-8 |
4-8 |
16 |
15 |
22/19 |
50 |
|
|
NCG-M16-7 |
3-7 |
16 |
10 |
22/22 |
50 |
|
|
NCG-M16-10 |
5-10 |
16 |
10 |
22/22 |
50 |
|
|
NCG-M16L-7 |
3-7 |
16 |
15 |
22/22 |
50 |
|
|
NCG-M16L-10 |
5-10 |
16 |
15 |
22/22 |
50 |
|
|
M18×1.5 |
NCG-M18-7 |
3-7 |
18 |
10 |
24/22 |
50 |
|
NCG-M18-10 |
5-10 |
18 |
10 |
24/22 |
50 |
|
|
NCG-M18L-7 |
3-7 |
18 |
15 |
24/22 |
50 |
|
|
NCG-M18L-10 |
5-10 |
18 |
15 |
24/22 |
50 |
|
|
M20 x 1.5 |
NCG-M20S-12.5 |
6-12 |
20 |
10 |
27/24 |
50 |
|
NCG-M20-11 |
5-11 |
20 |
11 |
27/27 |
50 |
|
|
NCG-M20-13.5 |
9-14 |
20 |
11 |
27/27 |
50 |
|
|
NCG-M20L-11 |
5-11 |
20 |
15 |
27/27 |
50 |
|
|
NCG-M20L-13.5 |
9-14 |
20 |
15 |
27/27 |
50 |
|
|
M25 x 1.5 |
NCG-M25S-14 |
9-14 |
25 |
11.6 |
33/27 |
50 |
|
NCG-M25-16 |
7-13 |
25 |
11.6 |
33/33 |
50 |
|
|
NCG-M25-18 |
13-18 |
25 |
11.6 |
33/33 |
50 |
|
|
NCG-M25L-16 |
7-13 |
25 |
15 |
33/33 |
50 |
|
|
NCG-M25L-18 |
13-18 |
25 |
15 |
33/33 |
50 |
|
|
M32 x 1.5 |
NCG-M32S-17.5 |
11-17.5 |
32 |
15 |
36/42 |
20 |
|
NCG-M32-22 |
15-22 |
32 |
15 |
41/42 |
20 |
|
|
NCG-M32-25 |
18-25 |
32 |
15 |
41/42 |
20 |
|
|
M36 x 1.5 |
NCG-M36-22 |
15-22 |
36 |
12 |
45/42 |
20 |
|
NCG-M36-25 |
18-25 |
36 |
12 |
45/42 |
20 |
|
|
M40 x 1.5 |
NCG-M40-26.5 |
18-25 |
40 |
15 |
50/52 |
10 |
|
NCG-M40-31 |
25-32 |
40 |
15 |
50/52 |
10 |
|
|
M50 x 1.5 |
NCG-M50-32 |
25-32 |
50 |
15 |
62/62 |
10 |
|
NCG-M50-41 |
31-41 |
50 |
15 |
62/62 |
10 |
|
|
M63 x 1.5 |
NCG-M63-41 |
29-38 |
63 |
18 |
75/65 |
10 |
|
NCG-M63-46 |
35-45 |
63 |
18 |
75/65 |
10 |
|
螺牙规格 Thread |
编号 Item.No. |
电缆范围 Ф(mm) |
螺纹外径 C1(mm) |
螺纹长度 C2(mm) |
扳手径 A&F(mm) |
包装 (pcs) |
|
PG7 |
NCG-PG7S-6 |
3-6.5 |
12.5 |
8 |
17/15 |
50 |
|
NCG- PG7-5 |
3-5.5 |
12.5 |
8 |
17/19 |
50 |
|
|
NCG- PG7-7 |
4-8 |
12.5 |
8 |
17/19 |
50 |
|
|
PG9 |
NCG- PG9-5.5 |
3-5.5 |
15.2 |
8.2 |
22/19 |
50 |
|
NCG- PG9-7.5 |
4-8 |
15.2 |
8.2 |
22/19 |
50 |
|
|
PG11 |
NCG- PG11-7 |
3-7 |
18.6 |
10 |
24/22 |
50 |
|
NCG- PG11-10 |
5-10 |
18.6 |
10 |
24/22 |
50 |
|
|
PG13.5 |
NCG- PG13.5-9 |
5-9 |
20.4 |
10 |
27/24 |
50 |
|
NCG- PG13.5-12.5 |
6-12 |
20.4 |
10 |
27/24 |
50 |
|
|
PG16 |
NCG-PG16-11 |
5-11 |
22.5 |
10.8 |
30/27 |
50 |
|
NCG-PG16-14 |
9-14 |
22.5 |
10.8 |
30/27 |
50 |
|
|
PG19 |
NCG-PG19-11 |
5-11 |
23.5 |
11 |
30/27 |
50 |
|
NCG-PG19-14 |
9-14 |
23.5 |
11 |
30/27 |
50 |
|
|
PG21 |
NCG-PG21-15.5 |
7-13 |
28.3 |
12 |
36/33 |
50 |
|
NCG-PG21-17.5 |
13-18 |
28.3 |
12 |
36/33 |
50 |
|
|
PG25 |
NCG-PG25-20 |
14-20 |
30 |
13 |
36/37 |
50 |
|
PG29 |
NCG-PG29-21 |
14-22 |
37 |
12 |
46/41 |
20 |
|
NCG-PG29-24 |
18-25 |
37 |
12 |
46/41 |
20 |
|
|
PG36 |
NCG-PG36-25.5 |
18-25 |
47 |
14 |
57/52 |
10 |
|
NCG-PG36-31 |
25-32 |
47 |
14 |
57/52 |
10 |
|
|
PG42 |
NCG-PG42-32 |
25-32 |
54 |
15 |
64/62 |
10 |
|
NCG-PG42-41 |
31-41 |
54 |
15 |
64/62 |
10 |
|
|
PG48 |
NCG-PG48-38 |
29-38 |
59.3 |
15.5 |
70/65 |
10 |
|
NCG-PG48-45.5 |
35-45 |
59.3 |
15.5 |
70/65 |
10 |
|
螺牙规格 Thread |
编号 Item.No. |
电缆范围 Ф(mm) |
螺纹外径 C1(mm) |
螺纹长度 C2(mm) |
扳手径 A&F(mm) |
包装 (pcs) |
|
G1/4 |
NCG-G1/4-5 |
3-5.3 |
13.157 |
8.5 |
19/19 |
50 |
|
NCG-G1/4-8 |
4-8 |
13.157 |
8.5 |
19/19 |
50 |
|
|
G3/8 |
NCG- G3/8-7 |
3-6.5 |
16.66 |
10 |
22/22 |
50 |
|
NCG-G3/8-10 |
5-10 |
16. |
10 |
22/22 |
50 |
|
|
G1/2 |
NCG-G1/2-9 |
5-9 |
20.995 |
10 |
27/24 |
50 |
|
NCG-G1/2-12 |
6-12 |
20.995 |
10 |
27/24 |
50 |
|
|
G3/4 |
NCG-G3/4-13 |
7-13 |
26.441 |
12 |
36/33 |
50 |
|
NCG-G3/4-18 |
13-18 |
26.441 |
12 |
36/33 |
50 |
|
|
G1 |
NCG-G1-22 |
16-22 |
33.249 |
15 |
46/41 |
20 |
|
NCG-G1-25 |
18-25 |
33.249 |
15 |
46/41 |
20 |
|
|
G1 1/4 |
NCG-G1 1/4-25.5 |
17-25.5 |
41.91 |
15 |
57/52 |
10 |
|
NCG-G1 1/4-31 |
25-32 |
41.91 |
15 |
57/52 |
10 |
|
|
NPT1/4 |
NCG-NPT1/4-5 |
3-5.3 |
13.157 |
8.5 |
19/19 |
50 |
|
NCG-NPT1/4-8 |
4-8 |
13.157 |
8.5 |
19/19 |
50 |
|
|
NPT3/8 |
NCG- NPT3/8-7 |
3-7 |
16.66 |
10 |
22/22 |
50 |
|
NCG-NPT3/8-10 |
5-10 |
16. |
10 |
22/22 |
50 |
|
|
NPT1/2 |
NCG-NPT1/2-9 |
5-9 |
20.995 |
10 |
27/24 |
50 |
|
NCG-NPT1/2-12.5 |
6-12.5 |
20.995 |
10 |
27/24 |
50 |
|
|
NPT3/4 |
NCG-NPT3/4-13 |
7-13 |
26.441 |
12 |
36/33 |
50 |
|
NCG-NPT3/4-18 |
12.5-18 |
26.441 |
12 |
36/33 |
50 |
|
|
NPT1 |
NCG-NPT1-22 |
15-22 |
33.249 |
15 |
46/41 |
20 |
|
NCG-NPT1-25 |
17-25 |
33.249 |
15 |
46/41 |
20 |
|
|
NPT1 1/4 |
NCG-NPT1 1/4-25.5 |
17-25.5 |
41.91 |
15 |
57/52 |
10 |
